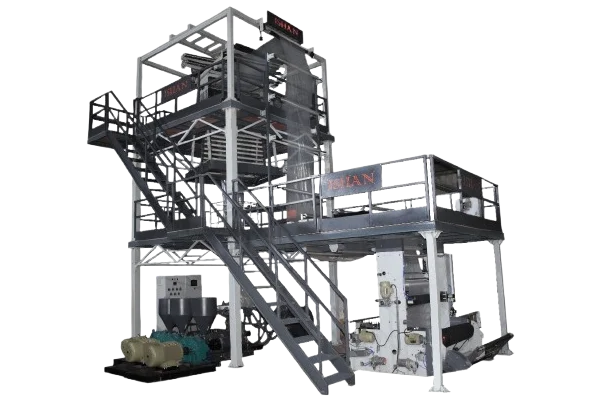

Multilayer Blown Film Extrusion Machine

Home / Multilayer Blown Film Extrusion Machine

Manufacturer, Supplier and Exporter of Multilayer Color Blown Film Extrusion, 3 layer blown film extrusion machine

Technical Specification

DESCRIPTION Unit IML 1000 IML 1250 IML 1500 IML 1700 IML 2200
Film Layflat width Range mm 600-1000 650-1250 900-1500 1000-1700 1400-2200
Maximum Film Output**
1. LD-LD-LD Kg / hr. 100-125 165-180 205-225 265-290 245-265
2. LLD-LLD-LLD Kg / hr. 95-115 145-165 185-200 200-225 225-250
3. HD-LD-HD/LD Kg / hr. 100-115 150-175 195-215 215-230 225-255
No. of Extruders – 3 3 3 3 3
L/D Ratio – 28:1 30:1 30:1 30:1 30:1
Extruder Option 1* mm 40/40/40 50/50/50 55/55/55 55/55/55 55/55/55
Extruder Option 2* mm 40/50/40 45/55/45 50/60/50 55/60/55 50/65/50
Die Lip Size mm 250 300 350 375 425
Takeoff Roller Width mm 1100 1350 1600 1800 2300
Total Connected Load KW 95 146 172 175 194
Space Requirement (L x W x H) m 11×5.5×7.5 15x9x13 16x10x13 16x10x13 17x10x13

MULTILAYER BLOWN FILM EXTRUSION MACHINE (ABC/ ABA/ AB TYPE)
*Can be vary as per requirement ** Depends upon type of matenal and type o printing.

Multilayer Blown Film Extrusion Machine

Salient Feature

  • Barrier Design screw
  • Grooved feed design barrel for high outputs
  • Fin type heaters for better control of heat
  • Screw nitride upto 60 to 67 HRC
  • High Output & Uniform melt quality at low temperature
  • Dual lip design with high volume for excellent bubble control
  • Four Segment cage with Teflon Bush
  • Operator friendly frame setting
  • PBT bushes as standard
  • For all standard lines, reversing haul off forms an integral methods for gauge randomization
  • Variable frequency A.C drive for nip
  • Two station semi-automatic surface winders
  • Pneumatic shaft
  • Expander roller

Optional Accessories

  • Online reel changeover without any wastage
  • Automatic reel change over and automatic web cross cutting mechanism
  • Load cell for tension control
  • Gravimetric dosing or batch blending with yield control
  • Fully automatic thickness measurement and control
  • Automatic Winder
  • IBC System

Application

Carry bags, Shopping bags, Water Pouches, Garbage Bags Shrink Wrap Film, Oil Packaging, Milk Packaging,Liners

multilayer blown film unit
Multilayer Blown Film Extrusion Machine Supplier
3 layer blown film extrusion machine, 2 layer blown film extrusion machine
